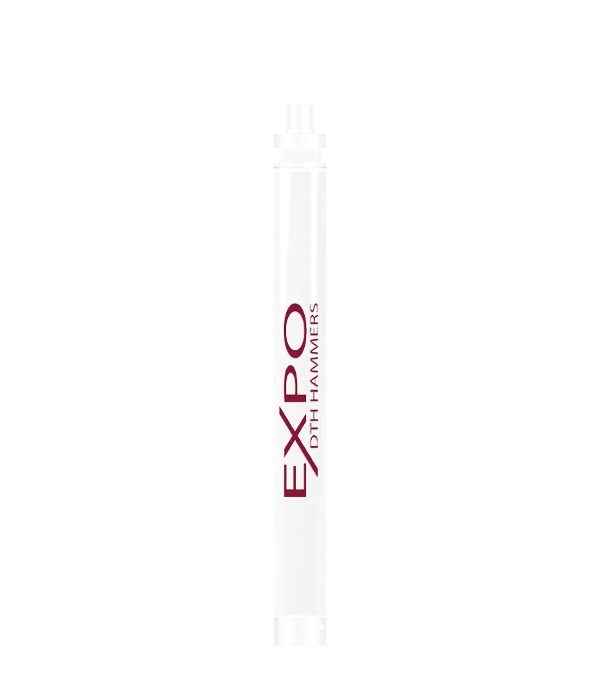

EXPO 33
| Hammer Model | EXPO 33 | ||
| Thread Connection | API 2 3/8″ | ||
| Hammer Length | 856 MM | ||
| Hammer Diameter | 81 MM | ||
| Bit Diameter Range | 90-120 MM | ||
| Weight | 22.2KG | ||
| Air Volume | 6-11 M3/MIN | ||
| Working pressure | 5-7 BAR | ||
| Bit Shank | EXPO 33 |
Product Description
| TOP HEAD | EXPO33-01 | VALVE | EXPO33-08 |
| CHECK VALVE CAP | EXPO33-02 | VALVE SEAT | EXPO33-09 |
| CHECK VALVE | EXPO33-03 | INNER CYLINDER | EXPO33-10 |
| CHECK VALVE SPRING | EXPO33-04 | PISTON | EXPO33-11 |
| WASHER | EXPO33-05 | GUIDING SLEEVE | EXPO33-12 |
| RUBBER RING | EXPO33-06 | FRONT HEAD | EXPO33-13 |
| VALVE CAP | EXPO33-07 | OUTER SLEEVE | EXPO33-14 |
