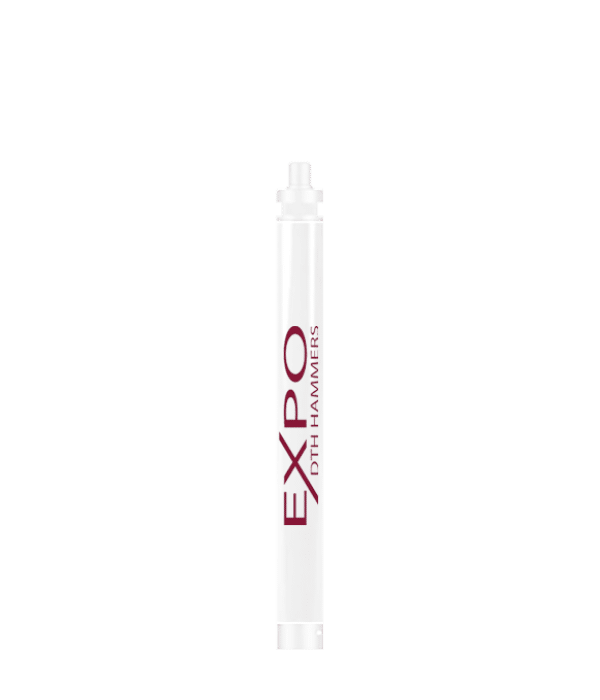

EXPO 2
| Hammer Model | EXPO 2 | ||
| Thread Connection | RD50 | ||
| Hammer Length | 778 MM | ||
| Hammer Diameter | 52 MM | ||
| Bit Diameter Range | 60-65 MM | ||
| Weight | 7.4KG | ||
| Air Volume | 4-7 M3/MIN | ||
| Working pressure | 5-7 BAR | ||
| Bit Shank | EXPO 2 |
Product Description
| TOP HEAD | EXPO2-01 | VALVE | EXPO2-08 |
| CHECK VALVE CAP | EXPO2-02 | VALVE SEAT | EXPO2-09 |
| CHECK VALVE | EXPO2-03 | INNER CYLINDER | EXPO2-10 |
| CHECK VALVE SPRING | EXPO2-04 | PISTON | EXPO2-11 |
| WASHER | EXPO2-05 | GUIDING SLEEVE | EXPO2-12 |
| RUBBER RING | EXPO2-06 | FRONT HEAD | EXPO2-13 |
| VALVE CAP | EXPO2-07 | OUTER SLEEVE | EXPO2-14 |
